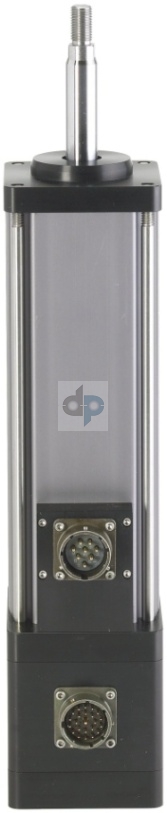

Tritex Linear Vertical View.jpg
Exlar Roller Screw

NEW! Exlar Tritex Rotary Servo Motor with Integrated Drive

Exlar's new Tritex Series actuators include a brushless servo motor, a servo amplifier, and a position controller in a single housing, resulting in a simple and cost-effective electric actuator alternative to fluid power actuators and more costly servo component systems. Electric actuators offer improved precision and lower maintenance compared to pneumatic and hydraulic power devices. Tritex actuators provide a simple replacement solution for existing ball screw or separate gear reducer mechanisms. The need for external servo amplifiers, cables, and extra panel space are eliminated by this simple and elegant solution. The servo amplifier is mounted within the actuator enclosure. However, where physical constraints or environmental conditions prohibit the mounting of the electronics on the actuator, Exlar offers the TRA500, which provides Tritex electronics in a remote enclosure. The Tritex rotary actuator features a rotatable shaft like that found in many electric motors. However, the rotational speed and position of the Tritex output shaft can be programmed in response to external commands. Input signals for triggering velocity and position presets may come through optically isolated inputs or through a Modbus serial communication channel. Tritex Rotary Quarter View.jpg Output signals of the status and events provide the ability to coordinate the Tritex units with other system components. Internal gear reduction is available to provide gear ratios of 4:1 to 100:1, making the Tritex rotary actuators suitable for a wide range of applications. Tritex linear actuators feature Exlar's patented inverted roller screw technology for producing the linear motion, which traditionally required pneumatic or hydraulic cylinders. Exlar's linear actuators provide low-maintenance and high-precision replacement options for fluid power motion control components. The Tritex software may be programmed with predefined sequences of positions, speeds, and force levels. For example, reaching a predefined force level could trigger the reversal of the actuator, or the actuator could maintain a constant force until an external signal is received. The Tritex is compatible with analog command signals, providing an electric actuator solution for valve and damper control applications. The Tritex linear actuators operate on 24 to 48 VDC, with a 3-inch (76mm) frame size, with 3 to 18 inch (75 to 455mm) strokes available.

Tritex RTM/G Ordering Information (See table below for RSM/RSG)

AAABBB-CCC-D-E-FFF-FF - (XX..XX - #####)
AAA = Actuator Type D = Shaft Type
RTM = Tritex Rotary Motor K = Keyed
RTG = Tritex Rotary Gearmotor R = Smooth/Round
BBB = Frame Size X = Special Shaft
060 = 60 mm E = Connector Options
090 = 90 mm I = Exlar Std M23 style connetor
CCC = Gear Ratio Bxx = Embedded leads, xx = length, 3 ft std
Blank = RTM Jxx = Embedded leads with receptacle, M23 std., xx = length in ft, 3 ft std.
Single Reduction Ratios X = Special (please specify)
004 = 4:1 FFF-FF = Motor Stator
005 = 5:1 RTM / RTG060
010 = 10:1 1B8-50 = 1 stack, 5000 rpm at 48 VDC, 2500 rpm at 24 VDC
Double Reduction Ratios 2B8-34 = 2 stack, 3400 rpm at 48 VDC, 1700 rpm at 24 VDC
016 = 16:1
020 = 20:1
3B8-25 = 3 stack, 2500 rpm at 48 VDC, 1250 rpm at 24 VDC
025 = 25:1
040 = 40:1
RTM / RTG090
050 = 50:1
100 = 100:1
1B8-17 = 1 stack, 1700 rpm at 48 VDC, 850 rpm at 24 VDC
2B8-10 = 2 stack, 1000 rpm at 48 VDC, 500 rpm at 24 VDC
3B8-07 = 3 stack, 700 rpm at 48 VDC, 350 rpm at 24 VDC
X..XX = Special Options
XH = Special Housing Options
XM = Special Motor Options
XL = Special Lubrication
##### = Part Number Designator for Specials
Optional 5 digit assigned PN to designate unique model numbers

Tritex RSM/G Ordering Information (Requires Remote Amplifier)

AAABBB-CCC-D-E-FFF-FF - (XX..XX - #####)
AAA = Actuator Type D = Shaft Type
RSM = Tritex Rotary Motor K = Keyed
RSG = Tritex Rotary Gearmotor R = Smooth/Round
BBB = Frame Size X = Special Shaft
060 = 60 mm E = Connector Options
090 = 90 mm I = Exlar Std M23 style connetor
CCC = Gear Ratio Bxx = Embedded leads, 3 ft std
Blank = RTM J3 = Emb. leads with receptacle, M23, 3 ft
J6 = Emb. leads with receptacle, M23, 6 ft
Single Reduction Ratios X = Special (please specify)
004 = 4:1 FFF-FF = Motor Stator
005 = 5:1 RSM / RSG060
010 = 10:1 1B8-50 = 1 stack, 5000 rpm at 48 VDC, 2500 rpm at 24 VDC
Double Reduction Ratios 2B8-34 = 2 stack, 3400 rpm at 48 VDC, 1700 rpm at 24 VDC
016 = 16:1
020 = 20:1
3B8-25 = 3 stack, 2500 rpm at 48 VDC, 1250 rpm at 24 VDC
025 = 25:1
040 = 40:1
RSM / RSG090
050 = 50:1
100 = 100:1
1B8-17 = 1 stack, 1700 rpm at 48 VDC, 850 rpm at 24 VDC
2B8-10 = 2 stack, 1000 rpm at 48 VDC, 500 rpm at 24 VDC
3B8-07 = 3 stack, 700 rpm at 48 VDC, 350 rpm at 24 VDC
X..XX = Special Options
XH = Special Housing Options
XM = Special Motor Options
XL = Special Lubrication
##### = Part Number Designator for Specials
Optional 5 digit assigned PN to designate unique model numbers

TRA Remote Amplifier Ordering Information

AAABBB-C-#####
AAA = Amplifier Type
TRA = TRA Remote Amplifier
BBB = Power
500 = 500 Watts
C = Connector Options
N = 1/2 inch NPSM Threaded Holes
G = PG Threaded Holes
I = Exlar Standard M23 Style Connector
Bxx = Embedded leads, xx = length in feet
Jxx = Embedded leads w/M23 plug, xx = length in feet
##### = Part Number Designator for Specials
Optional 5 digit PN to designate unique model number
